Festo
2310

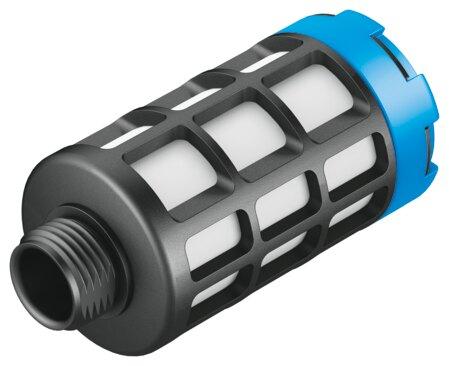

Pneumatic muffler U-1/2
The Festo 2310 is an industrial component with a G1/2 pneumatic connection, weighing 58.2 g and featuring protective grounding cushioning insert material along with RoHS-compliant materials. Operating within a pressure range of 0 MPa to 1 MPa (0 bar to 10 bar) and an ambient temperature range of -10 °C to 70 °C, this unit delivers a flow rate of 10300 l/min with respect to the atmosphere and emits a noise level of 82 dB(A). It supports any mounting position using compressed air as per ISO 8573-1:2010 [7:-:-], accommodates lubricated operation, and complies with VDMA24364-B1/B2-L LABS (PWIS) standards. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2310
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2310.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Flow rate with respect to atmosphere
- 10300 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Noise level
- 82 dB(A)
- Ambient temperature
- -10 °C...70 °C
- Product weight
- 58.2 g
- Pneumatic connection
- G1/2
- Cushioning insert material
- Protective grounding
- Note on materials
- RoHS compliant
