Festo
2312

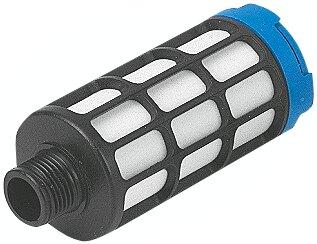

Pneumatic muffler U-1
The Festo 2312 is an industrial component featuring a G1 pneumatic connection and a product weight of 139.8 g, with a mounting position of any and an operating pressure of 0 MPa to 1 MPa (0 bar to 10 bar). It operates with compressed air as per ISO 8573-1:2010 [7:-:-], accommodates lubricated operation, and delivers a flow rate with respect to atmosphere of 20800 l/min alongside a noise level of 90 dB(A). Built with a protective grounding cushioning insert material and RoHS compliant materials, this unit functions within an ambient temperature range of -10 °C to 70 °C and meets VDMA24364-B1/B2-L LABS (PWIS) conformity. Submit the exact part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2312
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2312.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Flow rate with respect to atmosphere
- 20800 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Noise level
- 90 dB(A)
- Ambient temperature
- -10 °C...70 °C
- Product weight
- 139.8 g
- Pneumatic connection
- G1
- Cushioning insert material
- Protective grounding
- Note on materials
- RoHS compliant
