Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
2316

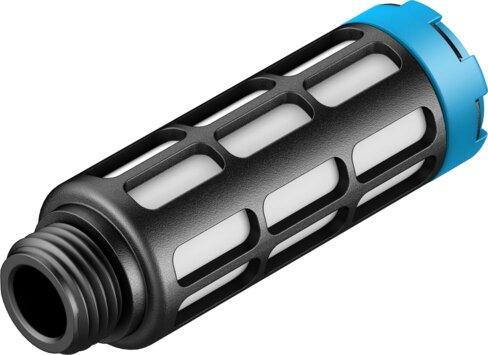

Pneumatic muffler U-1/4
The Festo 2316 is an industrial component featuring a G1/4 pneumatic connection and a flow rate of 3300 l/min with respect to atmosphere. Operating within a pressure range of 0 MPa to 1 MPa (0 bar to 10 bar) and an ambient temperature range of -10 °C to 70 °C, this RoHS-compliant unit weighs 7.7 g and accommodates any mounting position. It utilizes compressed air as per ISO 8573-1:2010 [7:-:-] as its operating medium, supports lubricated operation, and complies with VDMA24364-B1/B2-L LABS (PWIS) conformity while operating at a noise level of 76 dB(A). Submit the exact part number, quantity, and application requirements to request a quote for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2316
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2316.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Flow rate with respect to atmosphere
- 3300 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Noise level
- 76 dB(A)
- Ambient temperature
- -10 °C...70 °C
- Product weight
- 7.7 g
- Pneumatic connection
- G1/4
- Cushioning insert material
- Protective grounding
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2316. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
