Festo
2349274

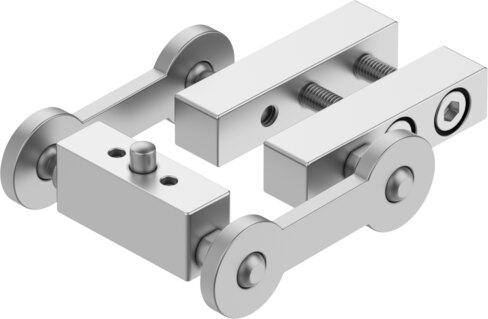

Moment compensator DARD-L1-18-M
The Festo 2349274 is a 94 g industrial component featuring a size 18 design with a radial deviation of plus or minus 2.5 mm and a long-term maximum permissible load in the direction of force of plus or minus 400 N. Constructed with an anodized aluminum adapter and bushing, steel bolt, coated steel screws, and PA-reinforced articulated joint, this RoHS-compliant part operates within an ambient temperature range of -10 °C to 60 °C. It maintains a corrosion resistance class (CRC) of 1 for low corrosion stress and fulfills VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2349274
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2349274.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 18
- Radial deviation +/-
- 2.5 mm
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Long-term maximum permissible load in direction of force +/-
- 400 N
- Product weight
- 94 g
- Note on materials
- RoHS compliant
- Adapter material
- Aluminum | Anodized
- Bolt material
- Steel
- Bushing material
- Aluminum | Anodized
- Articulated joint material
- PA-reinforced
- Material of screws
- Coated steel
