Festo
2349277

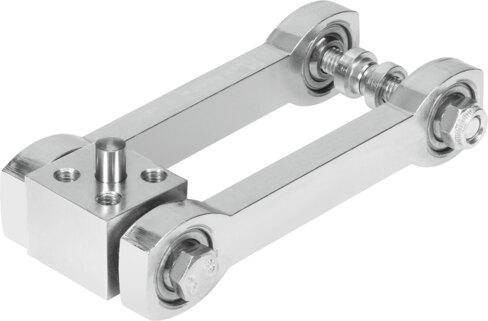

Moment compensator DARD-L1-40-M
The Festo 2349277 is an industrial component featuring a size 40 construction with a product weight of 580 g and a radial deviation of +/- 2.5 mm. Built to withstand an ambient temperature range of -10 °C to 60 °C, it supports a long-term maximum permissible load in the direction of force of +/- 2000 N under a low corrosion stress CRC 1 rating with VDMA24364-B1/B2-L LABS conformity. This RoHS compliant assembly incorporates galvanized steel adapters and bushings, a steel bolt and articulated joint, and coated steel screws. Submit the exact part number, quantity, and application requirements to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2349277
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2349277.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 40
- Radial deviation +/-
- 2.5 mm
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Long-term maximum permissible load in direction of force +/-
- 2000 N
- Product weight
- 580 g
- Note on materials
- RoHS compliant
- Adapter material
- Steel, galvanized
- Bolt material
- Steel
- Bushing material
- Galvanized steel
- Articulated joint material
- Steel, galvanized
- Material of screws
- Coated steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2349277. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
