Festo
2349278

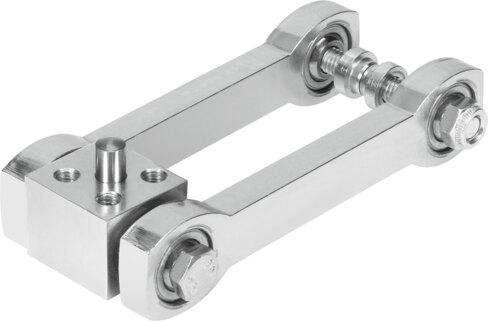

Moment compensator DARD-L1-50-M
The Festo industrial component, part number 2349278, features a size 50 design with a product weight of 960 g and a radial deviation of +/- 4 mm. Constructed with a galvanized steel adapter, steel bolt, galvanized steel bushing, galvanized steel articulated joint, and coated steel screws, this RoHS compliant unit operates within an ambient temperature range of -10 °C to 60 °C. It provides a long-term maximum permissible load in the direction of force of +/- 3150 N, a CRC of 1 for low corrosion stress, and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2349278
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2349278.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 50
- Radial deviation +/-
- 4 mm
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Long-term maximum permissible load in direction of force +/-
- 3150 N
- Product weight
- 960 g
- Note on materials
- RoHS compliant
- Adapter material
- Steel, galvanized
- Bolt material
- Steel
- Bushing material
- Galvanized steel
- Articulated joint material
- Steel, galvanized
- Material of screws
- Coated steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2349278. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
