Festo
2349279

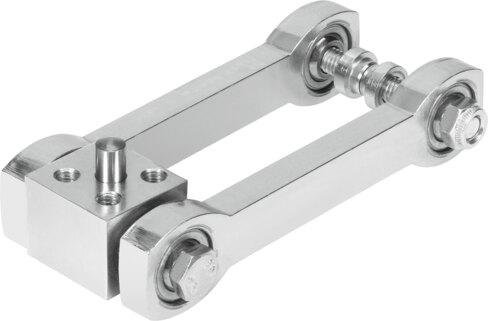

Moment compensator DARD-L1-63-M
This Festo industrial component, part number 2349279, weighs 1000 g and features a size 63 designation with a radial deviation of plus or minus 4 mm. Constructed with a galvanized steel adapter and bushing, steel bolt and articulated joint, and coated steel screws, the assembly supports a long-term maximum permissible load in the direction of force of plus or minus 5000 N. The unit operates within an ambient temperature range of -10 °C to 60 °C, exhibits a corrosion resistance class (CRC) of 1 for low corrosion stress, complies with VDMA24364-B1/B2-L LABS (PWIS) conformity, and includes RoHS-compliant materials. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2349279
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2349279.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 63
- Radial deviation +/-
- 4 mm
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Long-term maximum permissible load in direction of force +/-
- 5000 N
- Product weight
- 1000 g
- Note on materials
- RoHS compliant
- Adapter material
- Steel, galvanized
- Bolt material
- Steel
- Bushing material
- Galvanized steel
- Articulated joint material
- Steel, galvanized
- Material of screws
- Coated steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2349279. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
