Festo
2349280

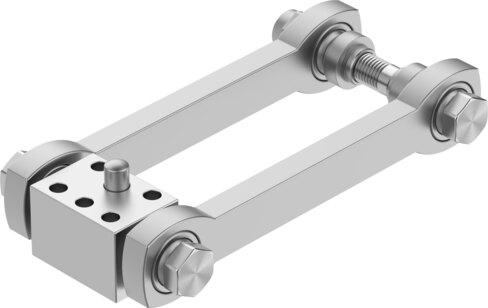

Moment compensator DARD-L1-80-M
This Festo industrial component, part number 2349280, features a size 80 construction with a product weight of 2815 g and a radial deviation of +/- 4 mm. The assembly incorporates galvanized steel adapters, a steel bolt, galvanized steel bushings, a galvanized steel articulated joint, and coated steel screws, all meeting RoHS material notes with a corrosion resistance class of 1 for low corrosion stress and VDMA24364-B1/B2-L LABS conformity. Operating within an ambient temperature range of -10 °C to 60 °C, the unit supports a long-term maximum permissible load in the direction of force of +/- 7800 N. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2349280
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2349280.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 80
- Radial deviation +/-
- 4 mm
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Long-term maximum permissible load in direction of force +/-
- 7800 N
- Product weight
- 2815 g
- Note on materials
- RoHS compliant
- Adapter material
- Steel, galvanized
- Bolt material
- Steel
- Bushing material
- Galvanized steel
- Articulated joint material
- Steel, galvanized
- Material of screws
- Coated steel
