Festo
2350968

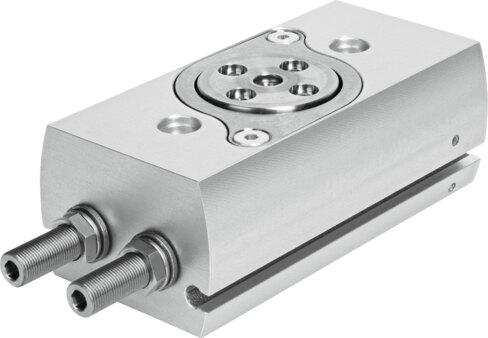

Rotary actuator DRRD-10-180-FH-PA
The Festo 2350968 is a double-acting industrial component utilizing a gear rack and pinion structural design with a size 10 profile and a 180-degree swivel angle. Operating within a pressure range of 0.3 MPa to 0.8 MPa, this unit delivers a theoretical torque of 0.4 Nm at 6 bar and features elastic cushioning rings at both ends with a 37-degree cushioning angle. Position sensing is achieved via proximity switch, and the component supports compressed air operating medium according to ISO 8573-1:2010 [7:4:4] across an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo part.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2350968
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2350968.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 10
- Cushioning angle
- 37 deg
- Setting range of swivel angle for each end position
- +10 /-100 deg
- Swivel angle
- 180 deg
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Structural design
- Gear rack/pinion
- Position sensing
- Via proximity switch
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Ambient temperature
- -10 °C...60 °C
- Theoretical torque at 6 bar
- 0.4 Nm
- Permissible mass moment of inertia
- 0.002 kgm²
- Product weight
- 245 g
- Type of mounting
- Alternatively: | With through-hole | With internal thread
- Pneumatic connection
- M3
- Note on materials
- RoHS compliant
- Drive shaft material
- high-alloy stainless steel
- Seals material
- NBR | TPE-U(PU)
- Housing material
- Wrought aluminum alloy | Smooth-anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2350968. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
