Festo
2372096

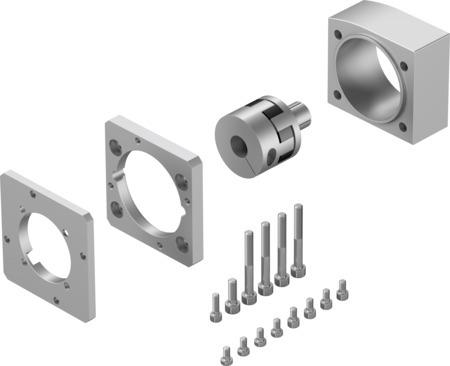

Axial kit EAMM-A-N80-80G
The Festo part number 2372096 is an industrial component featuring an actuator interface code of N80 and a motor-in interface code of 80G, supporting any mounting position and a maximum rotational speed of 5500 rpm. This RoHS-compliant unit delivers a transferable torque of 47 Nm with a mass moment of inertia of 151 kgmm2, a nominal length of 62.5 mm, and a product weight of 1290 g, while maintaining an IP40 degree of protection and VDMA24364-B2-L LABS conformity. It operates within ambient temperatures of -10 °C to 60 °C, storage temperatures from -25 °C to 60 °C, and relative air humidity levels of 0 to 95 %. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2372096
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2372096.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 62.5 mm
- Mounting position
- Any
- Max. rotational speed
- 5500 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95 %
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 151 kgmm²
- Transferable torque
- 47 Nm
- Product weight
- 1290 g
- Interface code, actuator
- N80
- Interface code, motor in
- 80G
- Note on materials
- RoHS-compliant
