Festo
2374780

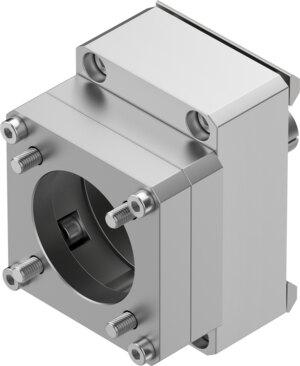

Axial kit EAMM-A-R48-60G
The Festo 2374780 is an industrial component featuring a nominal length of 52.5 mm, a mass moment of inertia of 14.5 kgmm², a transferable torque of 12.5 Nm, and a product weight of 480 g with an IP40 degree of protection. Operating reliably within an ambient temperature range of -10 °C to 60 °C and a storage temperature range of -25 °C to 60 °C, this unit supports a maximum rotational speed of 8000 rpm across any mounting position at 0 to 95% relative air humidity. Built with RoHS compliant materials and VDMA24364-B2-L LABS conformity, it utilizes an actuator interface code of R48 and a motor input interface code of 60G. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2374780
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2374780.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 52.5 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 14.5 kgmm²
- Transferable torque
- 12.5 Nm
- Product weight
- 480 g
- Interface code, actuator
- R48
- Interface code, motor in
- 60G
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2374780. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
