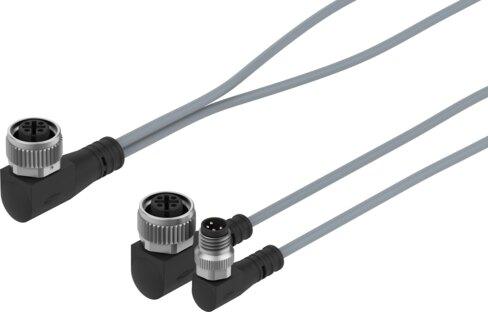

Reference imageConfirm configuration by manufacturer part number.
Festo
2384165
Connecting cable NEDV-L2R1-V7-M12W3-K-0.1L1-N-M8W4-0.2R1
The Festo industrial component, part number 2384165, features two M12 3-pin angled sockets and one M8 4-pin angled plug connected by a 0.2 m cable with a 2.9 mm diameter and a 2 x 0.14 mm² cable design. Built in accordance with EN 61076-2-101, EN 61076-2-104, and EN 61984 standards, this 28 g assembly operates within a DC voltage range of 0 V to 30 V and a current rating of 2 A at 40° C. It is constructed with a TPE-U(PUR) cable sheath offering RoHS compliance, VDMA24364-B1/B2-L LABS conformity, and a corrosion resistance class of CRC 2 for moderate corrosion stress, maintaining an IP65 degree of protection across an ambient temperature range of -25 °C to 80 °C in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2384165
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2384165.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61076-2-101 | EN 61076-2-104 | EN 61984
- Mounting position
- Any
- Product weight
- 28 g
- Electrical connection 1
- 2x angled socket, M12, 3-pin
- Electrical connection 2
- Angled plug, M8, 4-pin
- DC operating voltage range
- 0 V...30 V
- Current rating at 40° C
- 2 A
- Cable length
- 0.2 m
- Cable diameter
- 2.9 mm
- Cable design
- 2 x 0.14 mm²
- Degree of protection
- IP65
- Ambient temperature
- -25 °C...80 °C
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Note on materials
- RoHS compliant
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- Material of cable sheath
- TPE-U(PUR)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2384165. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
