Festo
2393549

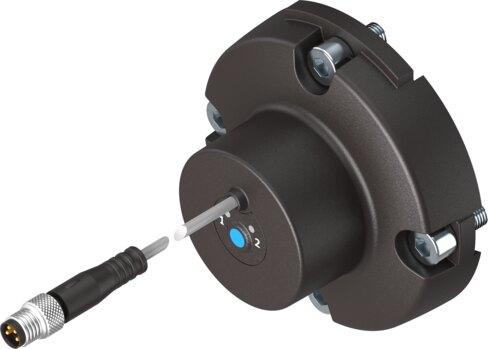

Position sensor SRBS-Q12-32-E270-EP-1-S-M8
The Festo part number 2393549 is a round industrial component utilizing a magnetic Hall measuring principle to monitor rotation angles across a 270-degree sensing range based on the EN 60947-5-2 norm. Featuring oil-resistant construction with RoHS-compliant and halogen-free materials, this device operates within an ambient temperature range of -20 °C to 70 °C and includes switchable 2 x PNP or 2 x NPN switching outputs with a maximum switching frequency of 125 Hz. It carries RCM compliance, c UL us - Listed (OL) certification, along with CE and UKCA markings as per EU and UK EMC and RoHS directives. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2393549
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2393549.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Round
- Based on norm
- EN 60947-5-2
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Special features
- Oil-resistant
- Note on materials
- RoHS compliant | Halogen-free
- Measured variable
- Rotation angle
- Measuring principle
- Magnetic Hall
- Sensing range
- 270 deg
- Ambient temperature
- -20 °C...70 °C
- Typical sampling interval
- 3 ms
- Switching output
- 2 x PNP or 2 x NPN switchable
- Switching element function
- N/C contact/N/O contact, switchable
- Switching point reproducibility
- <= 1°
- On time
- 4 ms
- Switch-off time
- 4 ms
- Max. switching frequency
- 125 Hz
- Max. output current
- 50 mA
- Max. switching capacity DC
- 1.5 W
- Voltage drop
- 1 V
- Residual current
- 0.05 mA
- Short-circuit protection
- Yes
- Overload protection
- Yes
- Rated operating voltage DC
- 24 V
- DC operating voltage range
- 10 V...30 V
- Residual ripple
- 10%
- Idle current
- 20 mA
