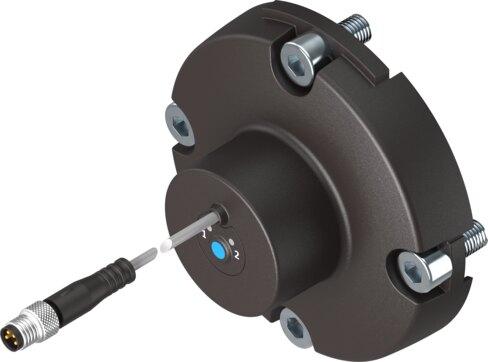

Name: Festo 2393550 Position sensor SRBS-Q12-40-E270-EP-1-S-M8
Brand: Festo

Position sensor SRBS-Q12-40-E270-EP-1-S-M8

The Festo part number 2393550 is a round industrial component utilizing a magnetic Hall measuring principle to measure a rotation angle sensing range of 270 degrees based on the EN 60947-5-2 norm. It features oil-resistant construction, RoHS compliance, halogen-free materials, an ambient temperature range of -20 °C to 70 °C, a typical sampling interval of 3 ms, and switchable 2 x PNP or 2 x NPN switching outputs with a max output current of 50 mA and max switching frequency of 125 Hz. This unit carries RCM compliance, c UL us - Listed (OL) certification, and CE and UKCA markings as per EU and UK EMC and RoHS directives. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 2393550
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 2393550.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Design: Round
Based on norm: EN 60947-5-2
Certication: RCM compliance mark | c UL us - Listed (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Special features: Oil-resistant
Note on materials: RoHS compliant | Halogen-free
Measured variable: Rotation angle
Measuring principle: Magnetic Hall
Sensing range: 270 deg
Ambient temperature: -20 °C...70 °C
Typical sampling interval: 3 ms
Switching output: 2 x PNP or 2 x NPN switchable
Switching element function: N/C contact/N/O contact, switchable
Switching point reproducibility: <= 1°
On time: 4 ms
Switch-oﬀ time: 4 ms
Max. switching frequency: 125 Hz
Max. output current: 50 mA
Max. switching capacity DC: 1.5 W
Voltage drop: 1 V
Residual current: 0.05 mA
Short-circuit protection: Yes
Overload protection: Yes
Rated operating voltage DC: 24 V
DC operating voltage range: 10 V...30 V
Residual ripple: 10%
Idle current: 20 mA
