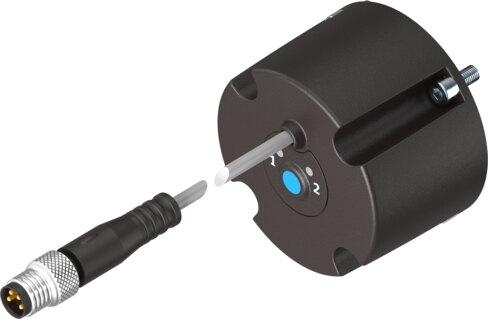

Name: Festo 2412001 Position sensor SRBS-Q1-10-E270-EP-1-S-M8
Brand: Festo

Position sensor SRBS-Q1-10-E270-EP-1-S-M8

The Festo part number 2412001 is a round industrial component based on the EN 60947-5-2 norm featuring a magnetic Hall measuring principle for rotation angle with a 270-degree sensing range. This oil-resistant, RoHS-compliant, and halogen-free device operates within an ambient temperature of -20 °C to 70 °C, utilizing a typical sampling interval of 3 ms, 2 x PNP or 2 x NPN switchable switching outputs, and a maximum switching frequency of 125 Hz. It carries RCM compliance, c UL us - Listed (OL) certification, along with CE and UKCA markings per EU and UK EMC and RoHS directives. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 2412001
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 2412001.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Design: Round
Based on norm: EN 60947-5-2
Certication: RCM compliance mark | c UL us - Listed (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Special features: Oil-resistant
Note on materials: RoHS compliant | Halogen-free
Measured variable: Rotation angle
Measuring principle: Magnetic Hall
Sensing range: 270 deg
Ambient temperature: -20 °C...70 °C
Typical sampling interval: 3 ms
Switching output: 2 x PNP or 2 x NPN switchable
Switching element function: N/C contact/N/O contact, switchable
Switching point reproducibility: <= 1°
On time: 4 ms
Switch-oﬀ time: 4 ms
Max. switching frequency: 125 Hz
Max. output current: 50 mA
Max. switching capacity DC: 1.5 W
Voltage drop: 1 V
Residual current: 0.05 mA
Short-circuit protection: Yes
Overload protection: Yes
Rated operating voltage DC: 24 V
DC operating voltage range: 10 V...30 V
Residual ripple: 10%
Idle current: 20 mA

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 2412001. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
