2474896

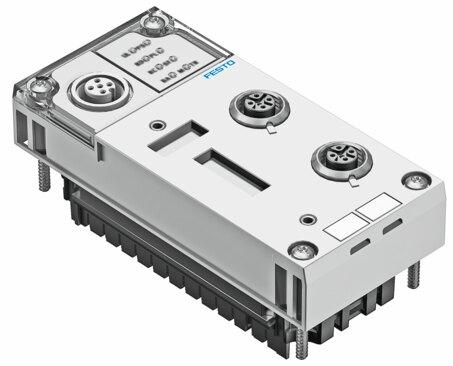

Name: Festo 2474896 Bus node CPX-FB40
Brand: Festo

Bus node CPX-FB40

The Festo part number 2474896 is an industrial component supporting Ethernet PowerLink V2 communication with a 100 Mbit/s baud rate and 2x M12x1 4-pin D-coded fieldbus interfaces. Housed in reinforced PA with IP65 and IP67 protection, this 125 g unit measures 50 mm x 107 mm x 50 mm and operates within an ambient temperature range of -5 °C to 50 °C. It features product- and bus-specific LED displays, channel- and module-oriented diagnostics, a DIL switch for control, and a maximum address capacity of 64 bytes for both inputs and outputs. Submit the exact part number, quantity, and application requirements for an RFQ quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 2474896
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 2474896.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Protocol: Ethernet PowerLink V2
Dimensions W x L x H: (incl. interlinking block) | 50 mm x 107 mm x 50 mm
Product weight: 125 g
Ambient temperature: -5 °C...50 °C
Storage temperature: -20 °C...70 °C
Degree of protection: IP65 | IP67
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Note on materials: RoHS compliant
Housing material: PA-reinforced
LED display (product-specic): M: Modify, parameterization | PL: Load supply | PS: electronics supply, sensor supply | SF: System fault
LED display (bus-specic): BE: Powerlink error | BS: Powerlink status | L/A1: Link / activity port 1 | L/A2: Link / Activity Port 2
Device-specic diagnostics: Channel-oriented and module-oriented diagnostics | Undervoltage of modules | Diagnostic memory
Control elements: DIL switch
Fieldbus interface: 2x socket, M12x1, 4-pin, D-coded
Max. address capacity inputs: 64 byte
Max. address capacity outputs: 64 byte
Parameterization: Diagnostic behavior | Fail-safe response | forcing of channels | Signal setup | System Parameters
Baud rate: 100 Mbit/s
Conguration support: XDC le | XDD le
Additional functions: Acyclic data access via "SDO"

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 2474896. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
