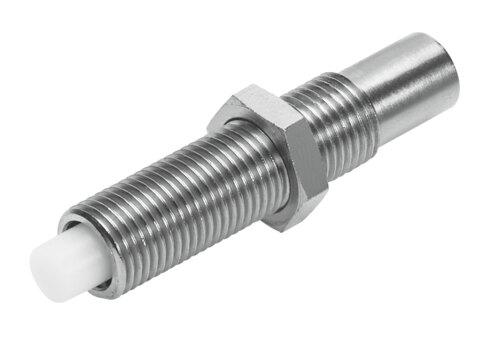

Reference imageConfirm configuration by manufacturer part number.
Festo
2480234
Shock absorber DYSC-25-25-Y1F
The Festo 2480234 is a single-acting pushing industrial component featuring a 25 size, a 25 mm stroke, and self-adjusting cushioning with a 25 mm cushioning length. Weighing 575 g, this unit operates in any mounting position within an ambient temperature range of -10 °C to 80 °C, offering a maximum stop force of 4000 N and a maximum energy absorption of 100 J per stroke. It achieves a maximum impact velocity of 3 m/s, features a CRC rating of 2 for moderate corrosion stress, and requires a reset time of 0.3 s at room temperature and 1 s at minimum ambient temperature. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2480234
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2480234.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 25
- Stroke
- 25 mm
- Cushioning
- Self-adjusting
- Mounting position
- Any
- Position sensing
- None
- Max. impact velocity
- 3 m/s
- Reset time at room temperature
- 0.3 s
- Reset time at min. ambient temperature
- 1 s
- Mode of operation
- Pushing | Single-acting
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...80 °C
- Cushioning length
- 25 mm
- Max. stop force
- 4000 N
- Max. energy absorption per stroke
- 100 J
- Max. energy absorption per hour
- 140000 J
- Max. residual energy
- 0.8 J
- Resetting force
- 14 N
- Min. insertion force
- 140 N
- Product weight
- 575 g
- Load range
- 160 kg
- Type of mounting
- With locknut
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- Steel, galvanized
- Piston rod material
- High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2480234. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
