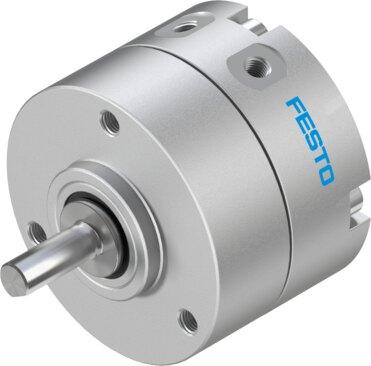

Name: Festo 2536484 Rotary actuator DRVS-6-180-P-EX4
Brand: Festo

Rotary actuator DRVS-6-180-P-EX4

The Festo part number 2536484 is a double-acting rotary vane industrial component featuring a size 6 design with an adjustable swivel angle from 0 deg to 180 deg and a 0.5 deg cushioning angle. Equipped with elastic cushioning rings or pads at both ends, a spigot shaft, and position sensing via proximity switch, this unit operates within a pressure range of 0.35 MPa to 0.8 MPa (3.5 bar to 8 bar) and achieves a maximum swivel frequency of 3 Hz at 6 bar with a repetition accuracy of 1 deg. Certified for hazardous environments with CE and UKCA markings as per EU and UK explosion protection directives, it supports ATEX and UKEX Zone 1, 2, 21, and 22 operations, II 2G gas and II 2D dust categories, Ex h IIC T4 Gb X ignition protection for gas, and EPL Db (GB) and EPL Gb (GB) EPL certifications for any mounting position and a 10 mm permissible stop radius. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 2536484
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 2536484.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 6
Cushioning angle: 0.5 deg
Swivel angle: 0 deg...180 deg
Permissible stop radius: 10 mm
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Mode of operation: Double-acting
Structural design: Rotary vane
Position sensing: Via proximity switch
Variants: Spigot shaft
Operating pressure: 0.35 MPa...0.8 MPa | 3.5 bar...8 bar
Max. swivel frequency at 6 bar: 3 Hz
Repetition accuracy: 1 deg
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
Explosion protection certication outside the EU: EPL Db (GB) | EPL Gb (GB)
Explosion prevention and protection: Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (UKEX) | Zone 22 (ATEX)
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T4 Gb X
Type of (ignition) protection for dust: Ex h IIIC T120°C Db X
Explosive ambient temperature: 0°C <= Ta <= +60°C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 2536484. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
