Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

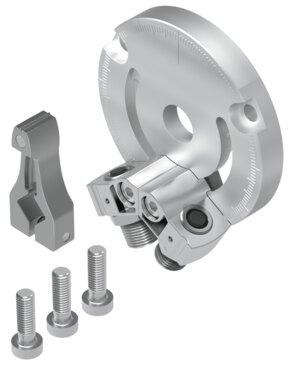

Reference imageConfirm configuration by manufacturer part number.
Festo
2536503
Stop kit DADP-ES-Q12-16
The Festo industrial component, part number 2536503, features a size 16 specification with an adjustment range of swivel angle from 0 deg to 270 deg and a precision adjustment of -6 deg. Constructed with a wrought aluminum alloy anodized disc, nickel-plated beryllium bronze lever, and high-alloy stainless steel stops, the 110 g unit offers RoHS compliant materials, a corrosion resistance class of CRC 1, and VDMA24364-B2-L LABS conformity. This hardware supports mounting in any position using a through-hole and operates within an ambient temperature range of 0 °C to 60 °C. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2536503
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2536503.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 16
- Adjustment range of swivel angle
- 0 deg...270 deg
- Mounting position
- Any
- Precision adjustment
- -6 deg
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 110 g
- Type of mounting
- With through-hole
- Note on materials
- RoHS compliant
- Stops material
- high-alloy stainless steel
- Lever material
- Nickel-plated beryllium bronze
- Disc material
- Wrought aluminum alloy, anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2536503. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
