Festo
2536505

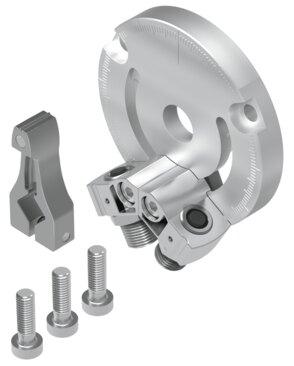

Stop kit DADP-ES-Q12-32
The Festo 2536505 is a 32-size industrial component featuring a swivel angle adjustment range of 0 deg to 270 deg with a -6 deg precision adjustment and an ambient temperature operating range of 0 °C to 60 °C. Constructed with a wrought aluminum alloy anodized disc, a nickel-plated beryllium bronze lever, and high-alloy stainless steel stops, the 250 g assembly offers a CRC 1 corrosion resistance class and VDMA24364-B2-L LABS conformity. It supports any mounting position via through-hole installation and includes RoHS compliant materials. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2536505
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2536505.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 32
- Adjustment range of swivel angle
- 0 deg...270 deg
- Mounting position
- Any
- Precision adjustment
- -6 deg
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 250 g
- Type of mounting
- With through-hole
- Note on materials
- RoHS compliant
- Stops material
- high-alloy stainless steel
- Lever material
- Nickel-plated beryllium bronze
- Disc material
- Wrought aluminum alloy, anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2536505. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
