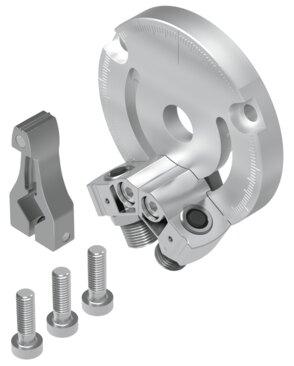

Reference imageConfirm configuration by manufacturer part number.
Festo
2536506
Stop kit DADP-ES-Q12-40
The Festo 2536506 is an industrial component featuring a size 40 design with an adjustment range of swivel angle from 0 deg to 270 deg and a precision adjustment of -6 deg. Constructed with high-alloy stainless steel stops, a nickel-plated beryllium bronze lever, and a wrought aluminum alloy anodized disc, this RoHS compliant unit weighs 450 g and achieves a corrosion resistance class (CRC) of 1 with VDMA24364-B2-L LABS conformity. It supports mounting in any position using a through-hole type for an ambient temperature range of 0 °C to 60 °C. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2536506
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2536506.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 40
- Adjustment range of swivel angle
- 0 deg...270 deg
- Mounting position
- Any
- Precision adjustment
- -6 deg
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 450 g
- Type of mounting
- With through-hole
- Note on materials
- RoHS compliant
- Stops material
- high-alloy stainless steel
- Lever material
- Nickel-plated beryllium bronze
- Disc material
- Wrought aluminum alloy, anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2536506. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
