Festo
2536756

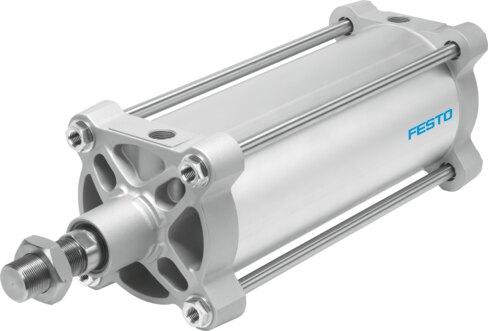

ISO cylinder DSBG-160-320-P-N3
The Festo 2536756 is a double-acting industrial component featuring a 160 mm piston diameter, a 320 mm stroke, and an ISO 15552 structural design comprising a piston, piston rod, tie rod, and cylinder barrel. Operating within a pressure range of 0.06 MPa to 1 MPa (0.6 bar to 10 bar), this unit delivers a theoretical retracting force of 11310 N and an advancing force of 12064 N at 6 bar utilizing compressed air in accordance with ISO 8573-1:2010 [7:4:4]. It is equipped with an M36x2 external piston rod thread at one end, elastic cushioning rings at both ends handling 3.3 J of impact energy, and supports any mounting position within an ambient temperature range of -20 °C to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2536756
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2536756.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 320 mm
- Piston diameter
- 160 mm
- Piston rod thread
- M36x2
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Variants
- Piston rod at one end
- Operating pressure
- 0.06 MPa...1 MPa | 0.6 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 3.3 J
- Theoretical force at 6 bar, retracting
- 11310 N
- Theoretical force at 6 bar, advancing
- 12064 N
- Moving mass
- 7396 g
- Moving mass at 0 mm stroke
- 4292 g
- Additional moving mass per 10 mm stroke
- 97 g
- Product weight
- 18407 g
- Basic weight with 0 mm stroke
- 11751 g
- Additional weight per 10 mm stroke
- 208 g
- Type of mounting
- Alternatively: | With internal thread | With accessories
- Pneumatic connection
- G3/4
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2536756. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
