Festo
2537459

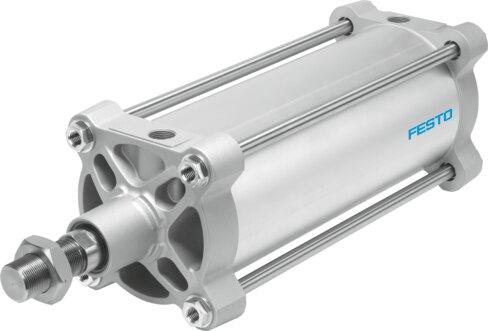

ISO cylinder DSBG-200-400-P-N3
Engineered with a 200 mm piston diameter, 400 mm stroke, and an M36x2 external piston rod thread, this double-acting Festo industrial component operates between 0.6 bar and 10 bar utilizing compressed air conforming to ISO 8573-1:2010 [7:4:4]. The tie rod structural design features elastic cushioning rings at both ends, supporting an ambient temperature range of -20 °C to 80 °C with a moderate corrosion resistance class of CRC 2. It delivers a moving mass of 9228 g alongside theoretical forces of 18096 N retracting and 18850 N advancing at 6 bar in any mounting position. Submit part number 2537459 along with your required quantity and application details to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2537459
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2537459.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 400 mm
- Piston diameter
- 200 mm
- Piston rod thread
- M36x2
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Variants
- Piston rod at one end
- Operating pressure
- 0.06 MPa...1 MPa | 0.6 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 4.8 J
- Theoretical force at 6 bar, retracting
- 18096 N
- Theoretical force at 6 bar, advancing
- 18850 N
- Moving mass
- 9228 g
- Moving mass at 0 mm stroke
- 5348 g
- Additional moving mass per 10 mm stroke
- 97 g
- Product weight
- 25333 g
- Basic weight with 0 mm stroke
- 15493 g
- Additional weight per 10 mm stroke
- 246 g
- Type of mounting
- Alternatively: | With internal thread | With accessories
- Pneumatic connection
- G3/4
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2537459. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
