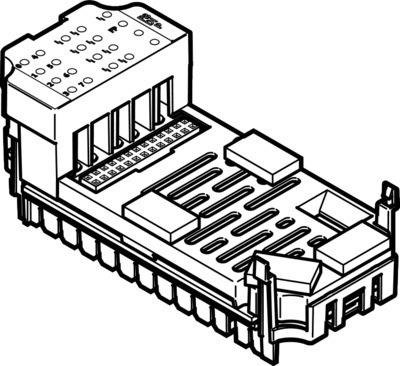

Reference imageConfirm configuration by manufacturer part number.
Festo
2597424
Input module CPX-F8DE-P
The Festo part number 2597424 is an industrial component measuring 50 mm by 107 mm by 55 mm with a product weight of 46 g, operating within an ambient temperature range of -5 °C to 50 °C and featuring a maximum cable length of 200 m with a maximum address capacity of 6 bytes for inputs. It provides extensive diagnostics including wire break, short circuit, and cross circuit per channel, alongside 1 fail-safe mode protocol active, 1 group diagnostics, 8 channel diagnostics, and 8 channel status LED indicators, plus DIL switch control elements. Certified by c UL us - recognized (OL) and TÜV Rheinland with CRC 1 low corrosion stress, this RoHS-compliant unit adheres to EU and UK directives for EMC, machinery, and RoHS. Please submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2597424
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2597424.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Dimensions W x L x H
- (incl. interlinking block and connection system) | 50 mm x 107 mm x 55 mm
- Product weight
- 46 g
- Ambient temperature
- -5 °C...50 °C
- Storage temperature
- -20 °C...70 °C
- Degree of protection
- Depending on terminal block
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress | (installed)
- Max. cable length
- 200 m
- LABS (PWIS) conformity
- VDMA24364-B2-L
- CE marking (see declaration of conformity)
- As per EU EMC directive | as per EU machinery directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK instructions for machines | To UK RoHS instructions
- Certication
- c UL us - recognized (OL)
- Certicate issuing authority
- 01/205/5444.01/21 | German Technical Control Board (TÜV) Rh. UK 01/205U/5444.00/22
- Note on materials
- RoHS compliant
- PFH
- 1E-09
- LED indicators
- 1 fail-safe mode protocol active | 1 group diagnostics | 8 channel diagnostics | 8 channel status
- Diagnostics
- Wire break per channel | Communication | Short circuit per channel | Process value error | Cross circuit per channel | Self-assessment | Overvoltage | Over temperature | Undervoltage
- Control elements
- DIL switch
- Max. address capacity inputs
- 6 byte
