Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

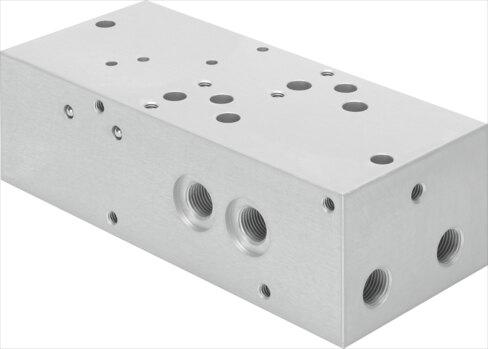

Reference imageConfirm configuration by manufacturer part number.
Festo
2605074
Sub-base VABP-S3-26V1G-G18-2
Engineered by Festo, the part number 2605074 is a 668 g industrial component featuring a wrought aluminum alloy manifold rail and NBR O-rings with RoHS compliance. This unit operates across a pressure range of 0 bar to 16 bar and a temperature range of 0 °C to 50 °C for both ambient conditions and the operating medium of compressed air conforming to ISO 8573-1:2010 [6:4:4]. It delivers a normal nominal flow rate of 800 l/min through G1/8 function ports 32 and 34, G1/8 pneumatic connections 2 and 4, and sub-base G1/8 connections 22 and 44, alongside an M5 pilot air port 14 and any mounting position. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2605074
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2605074.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 26 mm
- Function port 32
- G1/8
- Function port 34
- G1/8
- Pneumatic connection 22
- Sub-base | G1/8
- Pneumatic connection 44
- Sub-base | G1/8
- Mounting position
- Any
- Operating pressure
- 0 bar...16 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 800 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [6:4:4]
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Product weight
- 668 g
- Pilot air port 14
- M5
- Pneumatic connection 2
- G1/8
- Pneumatic connection 4
- G1/8
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
- O-ring material
- NBR
- Material of screws
- Steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2605074. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
