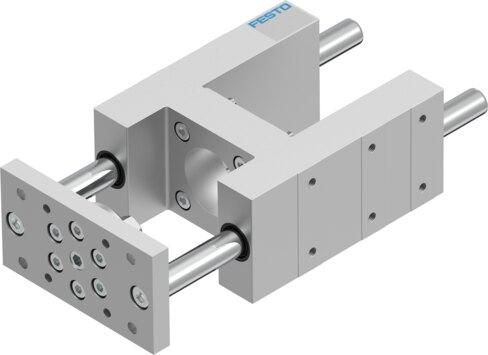

Reference imageConfirm configuration by manufacturer part number.
Festo
2608521
Guide unit EAGF-V2-KF-63-
The Festo part number 2608521 is a size 63 industrial guide featuring a recirculating ball bearing and a stroke length adjustable from 1 mm to 500 mm with 0 µm reversing backlash. Designed for installation in any mounting position, this structural design delivers a maximum dynamic force Fy and Fz of 1260 N, maximum static force Fy and Fz of 1600 N, and a displacement force of 15 N. It accommodates maximum torques Mx, My, and Mz of 75 Nm, 90 Nm, and 90 Nm respectively, alongside maximum static moments Mx of 95 Nm and My and Mz of 115 Nm within an ambient temperature range of -20 °C to 80 °C. Rated with a corrosion resistance class of CRC 0 for no corrosion stress and VDMA24364-B2-L LABS conformity, please submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2608521
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2608521.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 63
- Stroke
- 1 mm...500 mm
- Reversing backlash
- 0 µm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 1260 N
- Max. force Fy static
- 1600 N
- Max. force Fz
- 1260 N
- Max. force Fz static
- 1600 N
- Max. torque Mx
- 75 Nm
- Max. static moment Mx
- 95 Nm
- Max. torque My
- 90 Nm
- Max. static moment My
- 115 Nm
- Max. torque Mz
- 90 Nm
- Max. static moment Mz
- 115 Nm
- Displacement force
- 15 N
- Moving mass at 0 mm stroke
- 2560 g
- Basic weight with 0 mm stroke
- 5525 g
- Additional weight per 10 mm stroke
- 49 g
- Additional moving mass per 10 mm stroke
- 49 g
- Center of gravity of moving mass with 0 mm stroke
- 48 mm
- Center of gravity of moving mass with 10 mm stroke
- 4.1 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- Quenched and tempered steel
- Housing material
- Wrought aluminum alloy | Anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2608521. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
