Festo

2608528

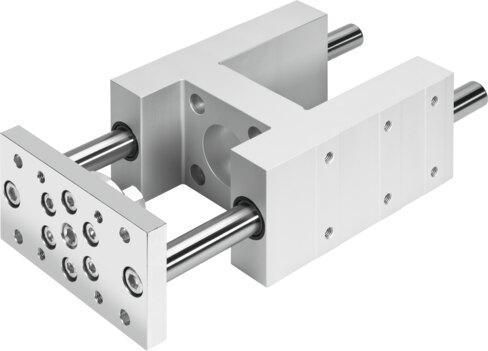

Guide unit EAGF-V2-KF-80-

The Festo 2608528 industrial component features a size 80 structural guide with a recirculating ball bearing and a stroke range of 1 mm to 550 mm, operating at ambient temperatures from -20 °C to 80 °C with 0 µm reversing backlash. This unit accommodates any mounting position and delivers a displacement force of 40 N, handling a maximum dynamic force Fy and Fz of 2300 N, a maximum static force Fy and Fz of 3120 N, maximum dynamic torques Mx, My, and Mz of 170 Nm, 191 Nm, and 191 Nm, and maximum static moments Mx, My, and Mz of 231 Nm, 259 Nm, and 259 Nm respectively. Constructed with a corrosion resistance class of 0 and VDMA24364-B2-L LABS conformity, it experiences no corrosion stress. Submit the exact part number, quantity, and application requirements for a quote.

Manufacturer

Festo

Part number

2608528

Data verification

Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.
