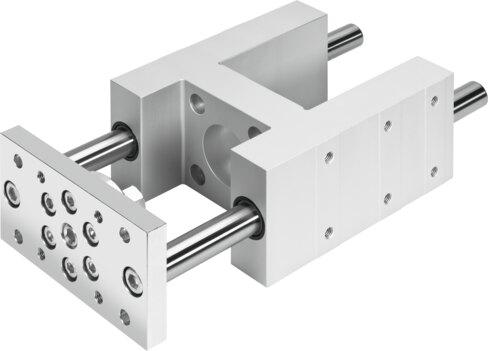

Reference imageConfirm configuration by manufacturer part number.
Festo
2608532
Guide unit EAGF-V2-KF-100-
The Festo 2608532 is an industrial guide unit featuring a size 100 footprint and an adjustable stroke ranging from 1 mm to 550 mm. This component incorporates a recirculating ball bearing guide supporting a maximum dynamic force Fy and Fz of 2300 N, a maximum static force Fy and Fz of 3120 N, and a displacement force of 40 N with 0 µm reversing backlash. It accommodates dynamic moments Mx, My, and Mz up to 198 Nm, 197 Nm, and 197 Nm respectively, alongside static moments reaching 268 Nm for Mx and 267 Nm for My and Mz. Operating within an ambient temperature range of -20 °C to 80 °C, the unit features any mounting position, a CRC 0 corrosion resistance class, and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2608532
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2608532.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 100
- Stroke
- 1 mm...550 mm
- Reversing backlash
- 0 µm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 2300 N
- Max. force Fy static
- 3120 N
- Max. force Fz
- 2300 N
- Max. force Fz static
- 3120 N
- Max. torque Mx
- 198 Nm
- Max. static moment Mx
- 268 Nm
- Max. torque My
- 197 Nm
- Max. static moment My
- 267 Nm
- Max. torque Mz
- 197 Nm
- Max. static moment Mz
- 267 Nm
- Displacement force
- 40 N
- Moving mass at 0 mm stroke
- 6148 g
- Basic weight with 0 mm stroke
- 13263 g
- Additional weight per 10 mm stroke
- 76 g
- Additional moving mass per 10 mm stroke
- 76 g
- Center of gravity of moving mass with 0 mm stroke
- 47 mm
- Center of gravity of moving mass with 10 mm stroke
- 3.6 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- Quenched and tempered steel
- Housing material
- Wrought aluminum alloy | Anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2608532. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
