Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
2614860

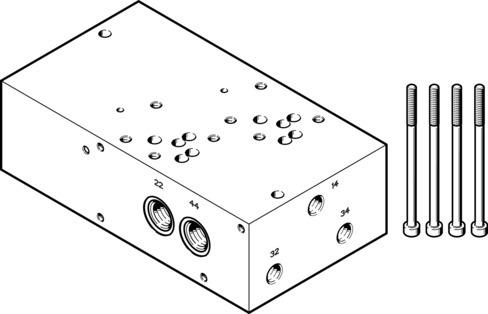

Sub-base VABP-S1-1V1G-G14-2
Engineered by Festo, this industrial component features a 42 mm width and a normal nominal flow rate of 1400 l/min based on DIN 1343 using compressed air according to ISO 8573-1:2010 [6:4:4]. The assembly incorporates a wrought aluminum alloy manifold rail, NBR O-rings, sub-base G1/4 and G1/8 pneumatic connections, and an operating pressure range from 0 bar to 16 bar across an ambient and medium temperature range of 0 °C to 50 °C. It carries a CRC rating of 0, VDMA24364-B1/B2-L LABS conformity, RoHS compliance, and a product weight of 1623 g while supporting any mounting position. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2614860
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2614860.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 42 mm
- Function port 32
- G1/8
- Function port 34
- G1/8
- Pneumatic connection 22
- Sub-base | G1/4
- Pneumatic connection 44
- Sub-base | G1/4
- Mounting position
- Any
- Operating pressure
- 0 bar...16 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 1400 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [6:4:4]
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Product weight
- 1623 g
- Pilot air port 14
- G1/8
- Pneumatic connection 2
- G1/4
- Pneumatic connection 4
- G1/4
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
- O-ring material
- NBR
- Material of screws
- Steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2614860. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
