Festo
2614863

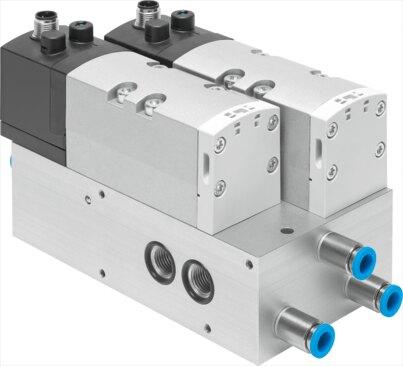

Sub-base VABP-S1-1V1G-G14-2M-R3
This Festo industrial component, part number 2614863, features a wrought aluminum alloy manifold rail with a width of 42 mm and a product weight of 2480 g, designed with G1/8 function ports 32 and 34, G1/8 pilot air port 14, and sub-base G1/4 pneumatic connections 22 and 44 alongside G1/4 connections 2 and 4. The unit operates within a pressure range of 0 bar to 16 bar, requires a pilot pressure of 3 bar to 8 bar, and delivers a normal nominal flow rate of 1400 l/min using compressed air as per ISO 8573-1:2010 [6:4:4] across a medium and ambient temperature range of 0 °C to 50 °C. Built with RoHS-compliant materials, a corrosion resistance class of CRC 0, and VDMA24364-B1/B2-L LABS conformity, it supports any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2614863
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2614863.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 42 mm
- Function port 32
- G1/8
- Function port 34
- G1/8
- Pneumatic connection 22
- Sub-base | G1/4
- Pneumatic connection 44
- Sub-base | G1/4
- Mounting position
- Any
- Operating pressure
- 0 bar...16 bar
- Pilot pressure
- 3 bar...8 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 1400 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [6:4:4]
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Product weight
- 2480 g
- Pilot air port 14
- G1/8
- Pneumatic connection 2
- G1/4
- Pneumatic connection 4
- G1/4
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
- O-ring material
- NBR
- Material of screws
- Steel
