Festo
2617488

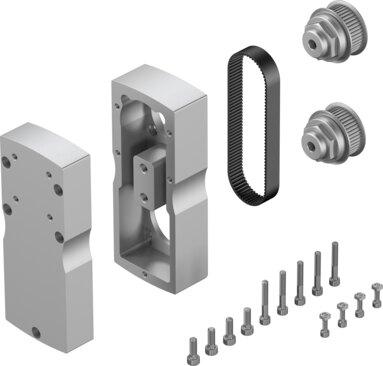

Parallel kit EAMM-U-70-D40-60P-96
The Festo 2617488 industrial component features a size 70 design with a 1:1 gear ratio, a transferable torque of 7 Nm, and a maximum rotational speed of 5000 rpm. Weighing 1730 g with a mass moment of inertia of 118 kgmm² and a no-load driving torque of 0.18 Nm, this unit includes a D40B actuator interface code and a 60P motor-in interface code. It provides an IP40 degree of protection, conforms to VDMA24364 Zone III LABS (PWIS) requirements, utilizes RoHS-compliant materials, and supports any mounting position within an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2617488
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2617488.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 70
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 5000 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 118 kgmm²
- No-load driving torque
- 0.18 Nm
- Transferable torque
- 7 Nm
- Product weight
- 1730 g
- Interface code, actuator
- D40B
- Interface code, motor in
- 60P
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2617488. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
