Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
2629253

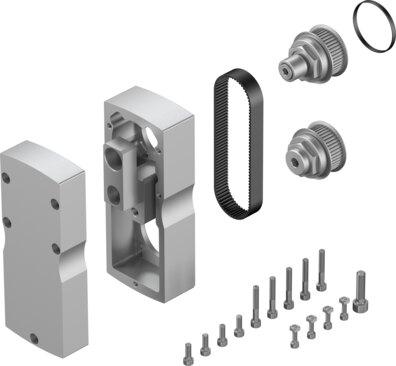

Parallel kit EAMM-U-70-S48-60P-96
The Festo part number 2629253 is an industrial component featuring a size 70 design and a 1:1 gear ratio with an S48 actuator interface code and a 60P motor input interface code. This unit delivers a transferable torque of 7 Nm, a no-load driving torque of 0.18 Nm, and a maximum rotational speed of 5000 rpm while maintaining a mass moment of inertia of 118 kgmm² and a product weight of 1790 g. Constructed with RoHS-compliant materials and VDMA24364 Zone III LABS conformity, it operates at an ambient temperature range of -10 °C to 60 °C, a storage temperature range of -25 °C to 60 °C, relative air humidity from 0 to 95%, and an IP40 degree of protection in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2629253
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2629253.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 70
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 5000 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 118 kgmm²
- No-load driving torque
- 0.18 Nm
- Transferable torque
- 7 Nm
- Product weight
- 1790 g
- Interface code, actuator
- S48
- Interface code, motor in
- 60P
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2629253. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
