Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

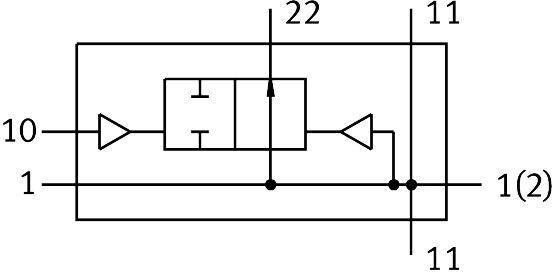

Reference imageConfirm configuration by manufacturer part number.
Festo
2663892
Branching module PMBL-90-HP3-E
The Festo 2663892 is a size 90 branching module featuring a nominal width DN of 36 from the L series, designed for installation in any mounting position with a wrought aluminum alloy housing and NBR seals. It operates at pressures from 0 MPa to 5 MPa (0 bar to 50 bar) and pilot pressures from 0 bar to 50 bar using compressed air as per ISO 8573-1:2010 [7:4:4], carrying CE and UKCA markings per pressure equipment directives alongside a CRC rating of 2 and VDMA24364 Zone III LABS conformity. This RoHS compliant component weighs 2600 g and functions within ambient, medium, and storage temperature ranges defined from -10 °C to 60 °C, with food industry usage outlined in supplementary documentation. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2663892
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2663892.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 90
- Nominal width DN
- 36
- Series
- L
- Mounting position
- Any
- Structural design
- Branching module
- Operating pressure
- 0 MPa...5 MPa | 0 bar...50 bar
- Pilot pressure
- 0 bar...50 bar
- CE marking (see declaration of conformity)
- as per EU pressure equipment directive
- UKCA marking (see declaration of conformity)
- according to UK regulations for pressure equipment
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -10 °C...60 °C
- For use in the food industry
- See supplementary material information
- Temperature of medium
- 5 °C...60 °C
- Ambient temperature
- 5 °C...60 °C
- Product weight
- 2600 g
- Note on materials
- RoHS compliant
- Seals material
- NBR | Protective grounding
- Housing material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2663892. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
