Reference imageConfirm configuration by manufacturer part number.
Festo
2675

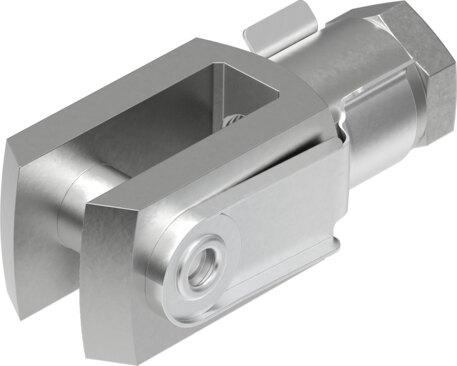

Rod clevis SG-M12
The Festo part number 2675 is an M12 industrial component featuring an internal M12 threaded connection based on ISO 8140 and conforming to DIN 71752 standards. Constructed with galvanized steel for the bolt, clevis, and nut, this RoHS-compliant part has a product weight of 168 g, a corrosion resistance class of CRC 1, and operates within an ambient temperature range of -40 °C to 150 °C. It complies with VDMA24364-B2-L LABS conformity and meets Li-ion battery production suitability requirements that exclude copper metals exceeding 1% by mass along with electrical wiring and coils. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2675
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2675.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- M12
- Based on norm
- ISO 8140
- Conforms to standard
- DIN 71752
- Threaded connection
- Internal thread M12
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Metals with more than 1% by mass of copper are excluded from use. | Circuit boards, lines, electrical push-in connectors and coils are excluded
- Ambient temperature
- -40 °C...150 °C
- Product weight
- 168 g
- Note on materials
- RoHS compliant
- Bolt material
- Steel | Galvanized
- Clevis material
- Steel | Galvanized
- Nut material
- Steel | Galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2675. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
