Festo
2676

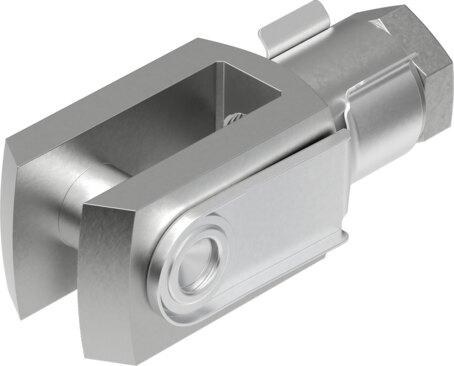

Rod clevis SG-M16
The Festo part number 2676 is an M16 industrial component featuring an internal M16 threaded connection, based on ISO 8140 and conforming to DIN 71752. Constructed with a galvanized steel bolt, clevis, and nut, this RoHS-compliant assembly weighs 376 g and offers a corrosion resistance class of CRC 1, VDMA24364-B2-L LABS conformity, and an ambient temperature range of -40 °C to 150 °C. For Li-ion battery production suitability, this part excludes electrical components, circuit boards, coils, and metals containing greater than 1% copper by mass. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2676
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2676.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- M16
- Based on norm
- ISO 8140
- Conforms to standard
- DIN 71752
- Threaded connection
- Internal thread M16
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Metals with more than 1% by mass of copper are excluded from use. | Circuit boards, lines, electrical push-in connectors and coils are excluded
- Ambient temperature
- -40 °C...150 °C
- Product weight
- 376 g
- Note on materials
- RoHS compliant
- Bolt material
- Steel | Galvanized
- Clevis material
- Steel | Galvanized
- Nut material
- Steel | Galvanized
