Festo
2732003

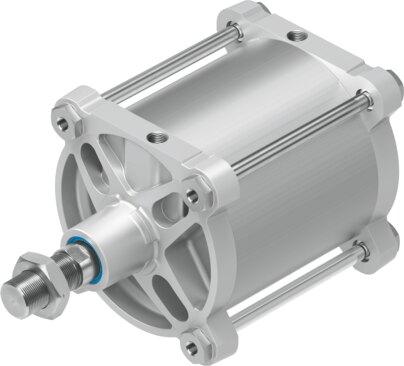

ISO cylinder DSBG-...-250- -
The Festo 2732003 industrial component features a 250 mm piston diameter, an adjustable pneumatic cushioning at both ends, and elastic cushioning rings or pads at both ends, operating within a pressure range of 0.06 MPa to 1 MPa (0.6 bar to 10 bar). Based on ISO 15552 norms and incorporating a structural design consisting of a piston, piston rod, tie rod 1, and cylinder barrel, this unit supports a stroke length from 1 mm to 2250 mm in any mounting position. Position sensing is achieved via a proximity switch, while piston rod thread options include M42x2, M42, M36x2, M30x2, M30, M27x2, M27, and M24 with either external or internal thread end configurations. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2732003
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2732003.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...2250 mm
- Piston diameter
- 250 mm
- Piston rod thread
- M42x2 | M42 | M36x2 | M30x2 | M30 | M27x2 | M27 | M24
- Based on norm
- ISO 15552
- Cushioning
- Elastic cushioning rings/pads at both ends | Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread | Internal thread
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- Extended external thread piston rod | Internal thread on piston rod | Special thread on piston rod | Extended piston rod | High corrosion protection | Through piston rod | Heat-resistant seals max. 120°C | Screwed-on swivel mounting position | Spacer bolt on end cap end | Spacer bolt at both ends | Spacer bolt on the bearing cap end | Variable stud length | Shortened piston rod external thread | Piston rod at one end | Via proximity switch
- Operating pressure
- 0.06 MPa...1 MPa | 0.6 bar...10 bar
