Festo
2733785

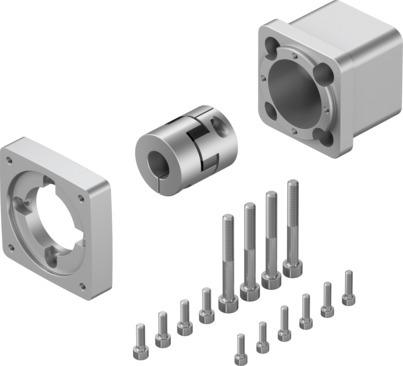

Axial kit EAMM-A-D50-80P
The Festo part number 2733785 is an industrial component featuring a nominal length of 79.7 mm, an actuator interface code of D50, a motor-in interface code of 80P, and a transferable torque of 17 Nm with a mass moment of inertia of 34.8 kgmm². Weighing 890 g, this unit operates at a maximum rotational speed of 6000 rpm in any mounting position and complies with VDMA24364-B2-L LABS conformity and RoHS material standards while providing an IP40 degree of protection for ambient temperatures between -10 °C and 60 °C, storage temperatures from -25 °C to 60 °C, and relative air humidity ranging from 0 to 95%. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2733785
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2733785.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 79.7 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95 %
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 34.8 kgmm²
- Transferable torque
- 17 Nm
- Product weight
- 890 g
- Interface code, actuator
- D50
- Interface code, motor in
- 80P
- Note on materials
- RoHS-compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2733785. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
