Festo
2734287

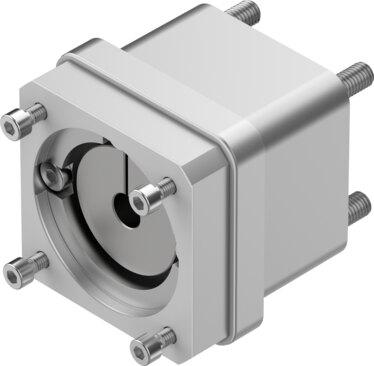

Axial kit EAMM-A-D50-70A-S1
The Festo part number 2734287 is an industrial component featuring a nominal length of 69 mm, a mass moment of inertia of 34.8 kgmm², and a transferable torque of 17 Nm with a maximum rotational speed of 6000 rpm. Weighing 730 g with RoHS-compliant materials and VDMA24364 Zone III LABS conformity, this unit operates in ambient temperatures from -10 °C to 60 °C, supports storage temperatures between -25 °C and 60 °C at 0 to 95% relative air humidity, and provides an IP65 degree of protection in any mounting position utilizing a D50 actuator interface code and a 70A motor-in interface code. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2734287
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2734287.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 69 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP65
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 34.8 kgmm²
- Transferable torque
- 17 Nm
- Product weight
- 730 g
- Interface code, actuator
- D50
- Interface code, motor in
- 70A
- Note on materials
- RoHS compliant
