Festo
2734290

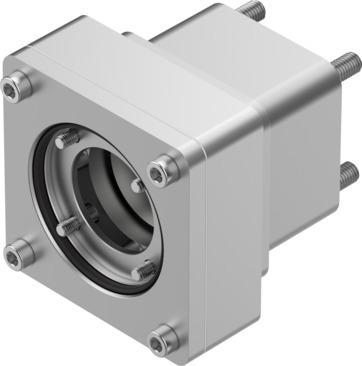

Axial kit EAMM-A-D50-60G-S1
The Festo part number 2734290 is an industrial component featuring a nominal length of 80.4 mm, a mass moment of inertia of 34.8 kgmm², and a transferable torque of 17 Nm with a maximum rotational speed of 6000 rpm. This RoHS-compliant unit weighs 1130 g, incorporates a D50 actuator interface code alongside a 60G motor input interface code, and achieves an IP65 degree of protection. Operating within an ambient temperature range of -10 °C to 60 °C, storage temperatures between -25 °C and 60 °C, and 0 to 95% relative air humidity, it supports any mounting position and meets VDMA24364 zone III LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2734290
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2734290.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 80.4 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364 zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95 %
- Degree of protection
- IP65
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 34.8 kgmm²
- Transferable torque
- 17 Nm
- Product weight
- 1130 g
- Interface code, actuator
- D50
- Interface code, motor in
- 60G
- Note on materials
- RoHS-compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2734290. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
