Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

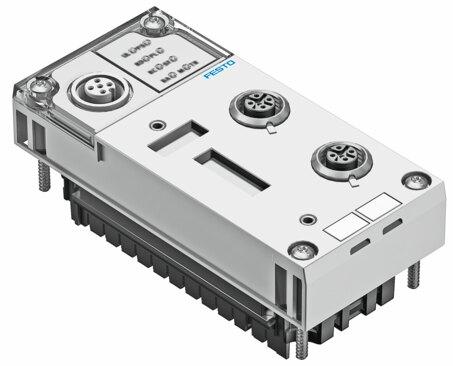

Reference imageConfirm configuration by manufacturer part number.
Festo
2735960
Bus node CPX-FB37
The Festo 2735960 industrial component utilizes an EtherCAT protocol operating at a 100 Mbit/s baud rate with a maximum address capacity of 128 bytes for both inputs and outputs. Housed in reinforced polyamide with IP65 and IP67 protection ratings, this unit measures 50 mm by 107 mm by 50 mm including the interlinking block and weighs 125 g. It features integrated LED displays for product-specific and bus-specific statuses, channel-oriented and module-oriented diagnostics, and a DIL switch for control. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2735960
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2735960.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Protocol
- EtherCAT
- Dimensions W x L x H
- (incl. interlinking block) | 50 mm x 107 mm x 50 mm
- Product weight
- 125 g
- Ambient temperature
- -5 °C...50 °C
- Storage temperature
- -20 °C...70 °C
- Degree of protection
- IP65 | IP67
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Housing material
- PA-reinforced
- LED display (product-specic)
- M: Modify, parameterization | PL: Load supply | PS: electronics supply, sensor supply | SF: System fault
- LED display (bus-specic)
- Error: Communication error | LA X1: Network active port 1 | LA X2: Network active port 2 | Run: Communication status
- Device-specic diagnostics
- Channel-oriented and module-oriented diagnostics | Undervoltage of modules | Diagnostic memory
- Control elements
- DIL switch
- Fieldbus interface
- 2x socket, M12x1, 4-pin, D-coded
- Max. address capacity inputs
- 128 byte
- Max. address capacity outputs
- 128 byte
- Parameterization
- Diagnostic behavior | Fail-safe response | forcing of channels | Signal setup | System Parameters
- Baud rate
- 100 Mbit/s
- Conguration support
- ESI le
- Additional functions
- Acyclic data access via eldbus | Object diagnostic
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2735960. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
