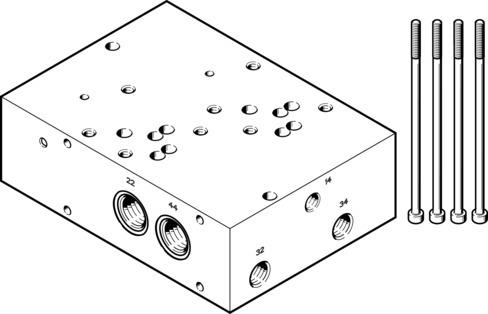

Reference imageConfirm configuration by manufacturer part number.
Festo
2738671
Sub-base VABP-S1-2V1G-G38-2
The Festo part number 2738671 is an industrial component featuring a wrought aluminum alloy manifold rail with NBR O-rings and a product weight of 1950 g. This RoHS compliant assembly operates within a pressure range of 0 bar to 16 bar and handles a normal nominal flow rate of 2000 l/min using compressed air as per ISO 8573-1:2010 [6:4:4] within a medium and ambient temperature range of 0 °C to 50 °C. It is equipped with G1/4 function ports 32 and 34, a G1/8 pilot air port 14, sub-base pneumatic connections 22 and 44 with G3/8, and G3/8 pneumatic connections 2 and 4, all while offering a corrosion resistance class of CRC 0 and VDMA24364-B1/B2-L LABS conformity for installation in any mounting position. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2738671
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2738671.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 54 mm
- Function port 32
- G1/4
- Function port 34
- G1/4
- Pneumatic connection 22
- Sub-base | G3/8
- Pneumatic connection 44
- Sub-base | G3/8
- Mounting position
- Any
- Operating pressure
- 0 bar...16 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 2000 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [6:4:4]
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Product weight
- 1950 g
- Pilot air port 14
- G1/8
- Pneumatic connection 2
- G3/8
- Pneumatic connection 4
- G3/8
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
- O-ring material
- NBR
- Material of screws
- Steel
