Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
2748903

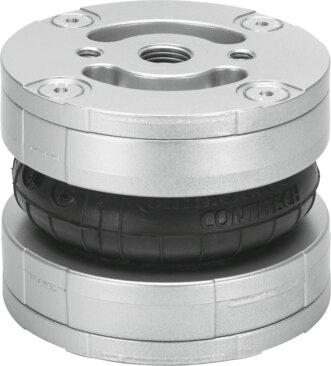

Bellow cylinder EB-80-20
The Festo 2748903 is a single-acting industrial component with a size 80 designation, a 20 mm stroke, and an operating pressure range of 0 MPa to 0.8 MPa (0 bar to 8 bar). This unit weighs 500 g, features a G1/4 pneumatic connection with internal thread mounting, and operates within an ambient temperature range of -40 °C to 70 °C using compressed air as per ISO 8573-1:2010 [-:-:4]. It accommodates a maximum height of 70 mm when advanced, a minimum installation height of 50 mm, a required installation diameter of 95 mm, a 400 N resetting force, a 5 mm maximum offset, and a 10-degree maximum angle of inclination in any mounting position. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2748903
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2748903.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 80
- Required installation Ø
- 95 mm
- Stroke
- 20 mm
- Max. height, advanced
- 70 mm
- Max. angle of inclination
- 10 deg
- Max. offset
- 5 mm
- Min. installation height
- 50 mm
- Mounting position
- Any
- Mode of operation
- Single-acting
- Operating pressure
- 0 MPa...0.8 MPa | 0 bar...8 bar | 0 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -40 °C...70 °C
- Resetting force
- 400 N
- Product weight
- 500 g
- Type of mounting
- With internal thread
- Pneumatic connection
- G1/4
- Note on materials
- RoHS compliant
- Bellows material
- CR
- Housing material
- Cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2748903. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
