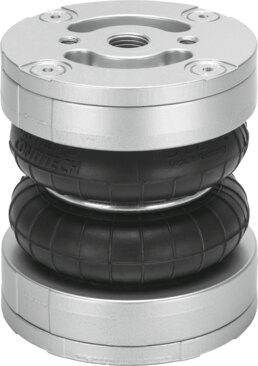

Reference imageConfirm configuration by manufacturer part number.
Festo
2748904
Bellow cylinder EB-80-45
The Festo size 80 industrial component is a single-acting pneumatic part featuring a 45 mm stroke, a G1/4 pneumatic connection, and internal thread mounting with a product weight of 500 g. Operating within a pressure range of 0 bar to 8 bar (0 MPa to 0.8 MPa, 0 psi to 116 psi) utilizing compressed air per ISO 8573-1:2010 [-:-:4] without oil lubrication, it accommodates an ambient temperature range of -40 °C to 70 °C and provides a resetting force of 200 N. This RoHS compliant component requires an installation diameter of 95 mm, a minimum installation height of 65 mm, a maximum advanced height of 110 mm, a maximum angle of inclination of 15 degrees, and a maximum offset of 10 mm in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2748904
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2748904.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 80
- Required installation Ø
- 95 mm
- Stroke
- 45 mm
- Max. height, advanced
- 110 mm
- Max. angle of inclination
- 15 deg
- Max. offset
- 10 mm
- Min. installation height
- 65 mm
- Mounting position
- Any
- Mode of operation
- Single-acting
- Operating pressure
- 0 MPa...0.8 MPa | 0 bar...8 bar | 0 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -40 °C...70 °C
- Resetting force
- 200 N
- Product weight
- 500 g
- Type of mounting
- With internal thread
- Pneumatic connection
- G1/4
- Note on materials
- RoHS compliant
- Bellows material
- CR
- Housing material
- Cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2748904. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
