Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

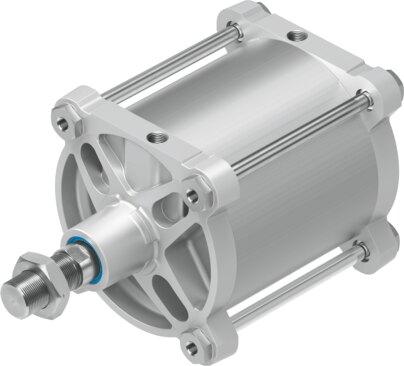

Reference imageConfirm configuration by manufacturer part number.
Festo
2776472
ISO cylinder DSBG-...-320- -
This Festo industrial component with part number 2776472 features a 320 mm piston diameter, an adjustable stroke ranging from 1 mm to 2250 mm, and an operating pressure range of 0.06 MPa to 1 MPa (0.6 bar to 10 bar). Conforming to the ISO 15552 norm, the structural design incorporates a piston, piston rod, tie rod 1, and cylinder barrel, offering variable piston rod threads from M27 to M48x2 with either external or internal thread options, adjustable pneumatic or elastic cushioning at both ends, and position sensing via proximity switch. Available in multiple variants including through piston rod, heat-resistant seals up to 120°C, and high corrosion protection, this unit supports any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2776472
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2776472.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...2250 mm
- Piston diameter
- 320 mm
- Piston rod thread
- M48x2 | M48 | M42x2 | M36x2 | M36 | M30x2 | M27x2 | M27
- Based on norm
- ISO 15552
- Cushioning
- Elastic cushioning rings/pads at both ends | Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread | Internal thread
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- Extended external thread piston rod | Internal thread on piston rod | Special thread on piston rod | Extended piston rod | High corrosion protection | Through piston rod | Heat-resistant seals max. 120°C | Screwed-on swivel mounting position | Spacer bolt on end cap end | Spacer bolt at both ends | Spacer bolt on the bearing cap end | Variable stud length | Shortened piston rod external thread | Piston rod at one end | Via proximity switch
- Operating pressure
- 0.06 MPa...1 MPa | 0.6 bar...10 bar
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2776472. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
