Festo
2782818

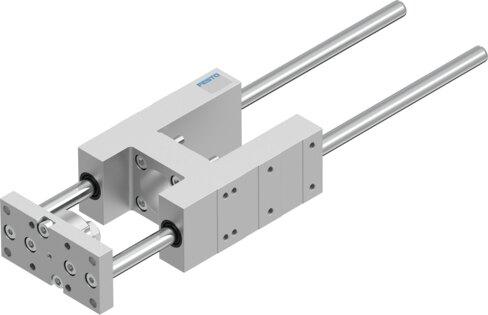

Guide unit EAGF-V2-KF-32-200
The Festo size 32 industrial component part number 2782818 features a 200 mm stroke with 0 µm reversing backlash and a recirculating ball bearing guide in any mounting position. It exhibits a displacement force of 15 N, a corrosion resistance class of 0 - No corrosion stress, VDMA24364-B2-L LABS conformity, and an ambient temperature range of -20 °C to 80 °C. This structural guide supports maximum dynamic forces of 750 N for Fy and Fz, static forces of 1020 N for Fy and Fz, dynamic torques of 28 Nm for Mx and 34 Nm for My and Mz, and static moments of 38 Nm for Mx and 46 Nm for My and Mz. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2782818
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2782818.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 32
- Stroke
- 200 mm
- Reversing backlash
- 0 µm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 750 N
- Max. force Fy static
- 1020 N
- Max. force Fz
- 750 N
- Max. force Fz static
- 1020 N
- Max. torque Mx
- 28 Nm
- Max. static moment Mx
- 38 Nm
- Max. torque My
- 34 Nm
- Max. static moment My
- 46 Nm
- Max. torque Mz
- 34 Nm
- Max. static moment Mz
- 46 Nm
- Displacement force
- 15 N
- Moving mass
- 1084 g
- Product weight
- 2045 g
- Center of gravity of moving mass with 0 mm stroke
- 30 mm
- Center of gravity of moving mass with 10 mm stroke
- 4.1 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- Quenched and tempered steel
- Housing material
- Wrought aluminum alloy | Anodized
- Material of yoke plate
- Steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2782818. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
