Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

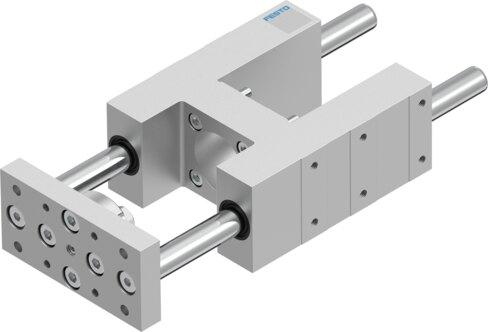

Reference imageConfirm configuration by manufacturer part number.
Festo
2782939
Guide unit EAGF-V2-KF-40-100
The Festo part number 2782939 is a structural guide unit of size 40 featuring a 100 mm stroke and a recirculating ball bearing guide with 0 µm reversing backlash. Designed for universal mounting positions within an ambient temperature range of -20 °C to 80 °C, this component exhibits a displacement force of 15 N and a corrosion resistance class of CRC 0 with VDMA24364-B2-L LABS conformity. It handles maximum dynamic forces of 1000 N for both Fy and Fz, static forces up to 1260 N for Fy and Fz, dynamic torques of 44 Nm (Mx) and 52 Nm (My and Mz), and static moments of 55 Nm (Mx) and 65 Nm (My and Mz). Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2782939
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2782939.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 40
- Stroke
- 100 mm
- Reversing backlash
- 0 µm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 1000 N
- Max. force Fy static
- 1260 N
- Max. force Fz
- 1000 N
- Max. force Fz static
- 1260 N
- Max. torque Mx
- 44 Nm
- Max. static moment Mx
- 55 Nm
- Max. torque My
- 52 Nm
- Max. static moment My
- 65 Nm
- Max. torque Mz
- 52 Nm
- Max. static moment Mz
- 65 Nm
- Displacement force
- 15 N
- Moving mass
- 1603 g
- Product weight
- 2837 g
- Center of gravity of moving mass with 0 mm stroke
- 38 mm
- Center of gravity of moving mass with 10 mm stroke
- 4.2 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- Quenched and tempered steel
- Housing material
- Wrought aluminum alloy | Anodized
- Material of yoke plate
- Steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2782939. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
