Festo
2782976

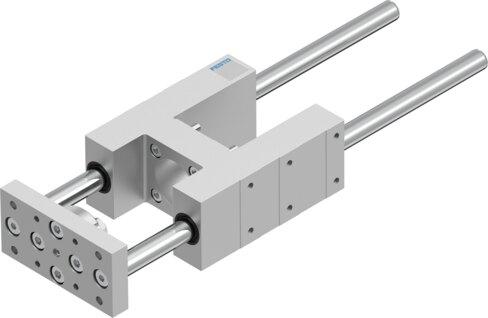

Guide unit EAGF-V2-KF-40-200
The Festo 2782976 is an industrial guide unit featuring a size 40 profile and a 200 mm stroke with 0 µm reversing backlash. Engineered with a recirculating ball bearing guide and a structural design for any mounting position, this component operates within an ambient temperature range of -20 °C to 80 °C and has a displacement force of 15 N. It handles a maximum static and dynamic force Fy and Fz of 1260 N and 1000 N respectively, alongside maximum static moments Mx, My, and Mz of 55 Nm, 65 Nm, and 65 Nm. Featuring a corrosion resistance class of CRC 0 and VDMA24364-B2-L LABS conformity, please submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2782976
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2782976.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 40
- Stroke
- 200 mm
- Reversing backlash
- 0 µm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 1000 N
- Max. force Fy static
- 1260 N
- Max. force Fz
- 1000 N
- Max. force Fz static
- 1260 N
- Max. torque Mx
- 44 Nm
- Max. static moment Mx
- 55 Nm
- Max. torque My
- 52 Nm
- Max. static moment My
- 65 Nm
- Max. torque Mz
- 52 Nm
- Max. static moment Mz
- 65 Nm
- Displacement force
- 15 N
- Moving mass
- 1923 g
- Product weight
- 3157 g
- Center of gravity of moving mass with 0 mm stroke
- 38 mm
- Center of gravity of moving mass with 10 mm stroke
- 4.2 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- Quenched and tempered steel
- Housing material
- Wrought aluminum alloy | Anodized
- Material of yoke plate
- Steel
