Festo
2783639

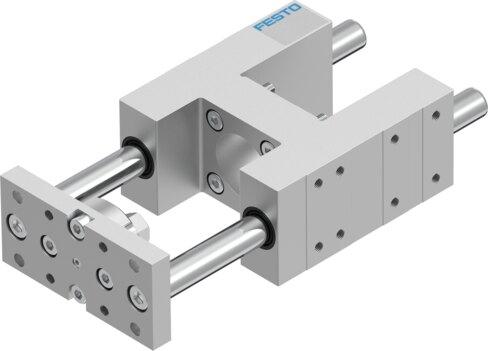

Guide unit EAGF-V2-KF-50-100
The Festo size 50 industrial component features a structural guide design with a recirculating ball bearing and a 100 mm stroke operating with 0 µm reversing backlash and a 15 N displacement force. Rated for an ambient temperature range of -20 °C to 80 °C, this unit provides a maximum dynamic force Fy and Fz of 1260 N, maximum static force Fy and Fz of 1600 N, maximum dynamic torque Mx of 65 Nm, and maximum dynamic torque My and Mz of 70 Nm. Additional specifications include a maximum static moment Mx of 83 Nm, maximum static moment My and Mz of 89 Nm, any mounting position, CRC 0 corrosion resistance, and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2783639
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2783639.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 50
- Stroke
- 100 mm
- Reversing backlash
- 0 µm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Max. force Fy
- 1260 N
- Max. force Fy static
- 1600 N
- Max. force Fz
- 1260 N
- Max. force Fz static
- 1600 N
- Max. torque Mx
- 65 Nm
- Max. static moment Mx
- 83 Nm
- Max. torque My
- 70 Nm
- Max. static moment My
- 89 Nm
- Max. torque Mz
- 70 Nm
- Max. static moment Mz
- 89 Nm
- Displacement force
- 15 N
- Moving mass
- 2505 g
- Product weight
- 4549 g
- Center of gravity of moving mass with 0 mm stroke
- 46 mm
- Center of gravity of moving mass with 10 mm stroke
- 4.3 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- Quenched and tempered steel
- Housing material
- Wrought aluminum alloy | Anodized
- Material of yoke plate
- Steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 2783639. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
