Festo
2797368

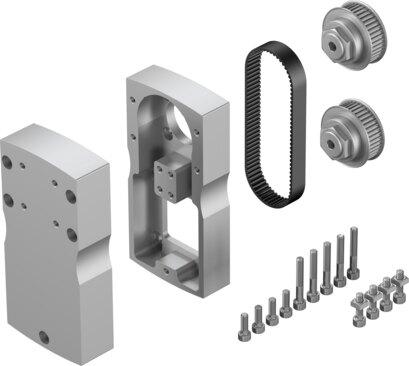

Parallel kit EAMM-U-110-D50-60G-120
The Festo part number 2797368 is a size 110 industrial component featuring a 1:1 gear ratio, a 25 Nm transferable torque, and a maximum rotational speed of 5000 rpm. This unit incorporates a D50B actuator interface code, a 60G motor input interface code, a mass moment of inertia of 799 kgmm², and a no-load driving torque of 0.3 Nm with a total product weight of 5290 g. Certified for any mounting position, it operates within an ambient temperature range of -10 °C to 60 °C, a storage temperature range of -25 °C to 60 °C, relative air humidity from 0 to 95%, IP40 protection, and VDMA24364 Zone III LABS conformity with RoHS-compliant materials. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 2797368
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2797368.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 110
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 5000 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 799 kgmm²
- No-load driving torque
- 0.3 Nm
- Transferable torque
- 25 Nm
- Product weight
- 5290 g
- Interface code, actuator
- D50B
- Interface code, motor in
- 60G
- Note on materials
- RoHS compliant
