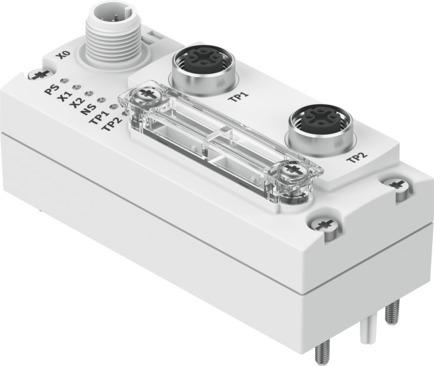

Reference imageConfirm configuration by manufacturer part number.
Festo
2798071
Bus node CTEU-EP
Festo Bus node CTEU-EP, part number 2798071, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 2798071
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 2798071.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Protocol
- EtherNet/IP | Modbus® TCP
- Dimensions W x L x H
- 40 mm x 91 mm x 50 mm
- Product weight
- 98 g
- Ambient temperature
- 0 °C...50 °C
- Storage temperature
- -20 °C...70 °C
- Degree of protection
- IP65 | IP67
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- KC characters
- KC-EMV
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- Note on materials
- RoHS compliant
- Housing material
- PA
- LED display (product-specic)
- PS: operating voltage for electronics and load supply | X1: module system status at I-Port 1 | X2: module system status at I-Port 2
- LED display (bus-specic)
- NS: Network status | TP1: Network active port 1 | TP2: Network active port 2
- Diagnostics
- Communication error | System diagnostics | Undervoltage
- Control elements
- DIL switch
- Fieldbus interface
- 2x socket, M12x1, 4-pin, D-coded
- Max. address capacity inputs
- 64 byte
- Max. address capacity outputs
- 64 byte
- Parameterization
- Diagnostic behavior | Fail-safe and idle response
- Baud rate
- 10/100 mbps
